Kawasaki Teryx H2 HD Receiver Hitch Installation Instructions For Models: Teryx H2 (2026-2026)

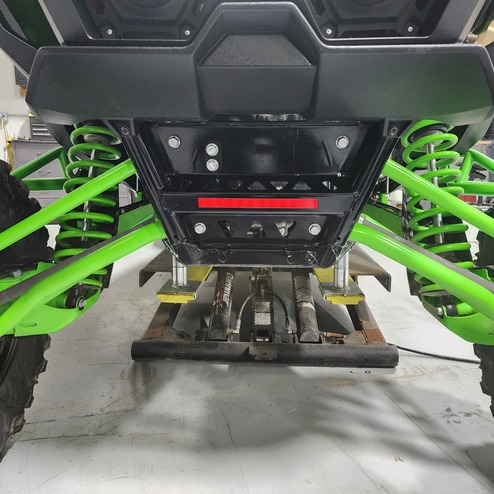

1. With the vehicle in park, support the rear so the wheels are just barely touching the ground.

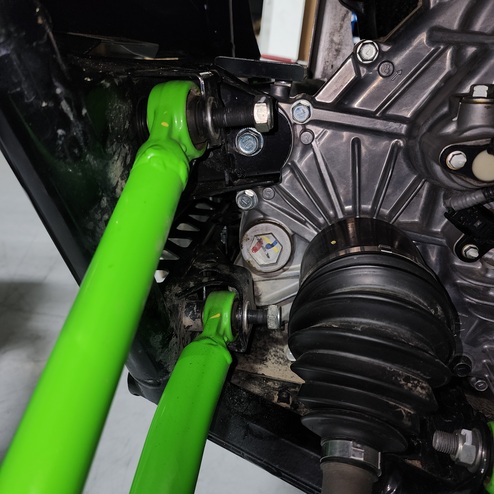

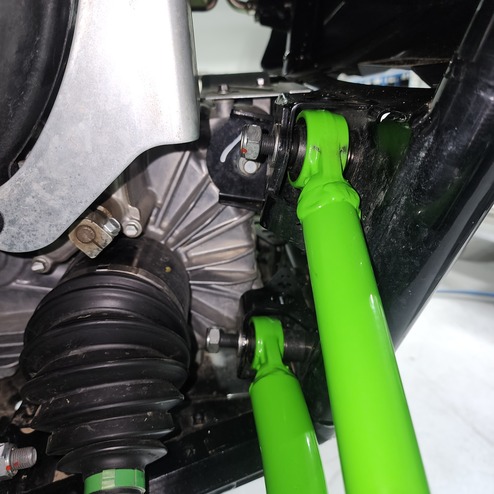

2. With the weight off of the rear tires begin removing the (4x Nuts, 4x Bolts, and 4x Washers) that secure the Inner Radius Rod ends to the frame.

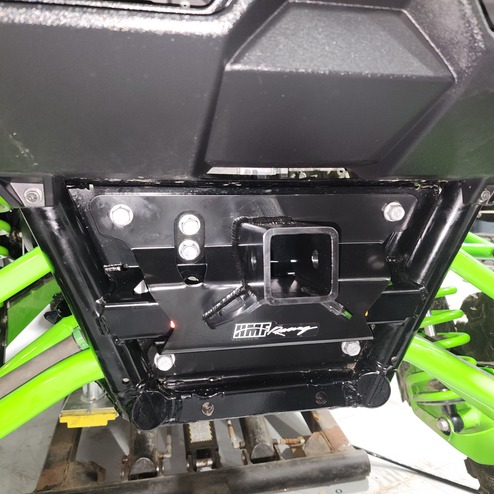

1. While holding the HMF HD Hitch Reciever in place, begin reinstalling the radius rod ends one at a time using the factory hardware. (Note. The lower radius rods utilize a loose spacer between the rod end and chassis, to aid in installation and hold spacer in place, use a small amount of grease on the face of the spacer that contacts the frame.)
2. With all hardware in place tighten bolts until just snug. (do not fully tighten hardware yet)
3. Next lower the vehicle to the ground and bounce the rear suspension to allow it to come to its natural resting position.
4. Once the suspension has settled fully tighten all hardware.
