Yamaha Wolverine RMAX Rear Camera Relocator Installation Instructions

Removal

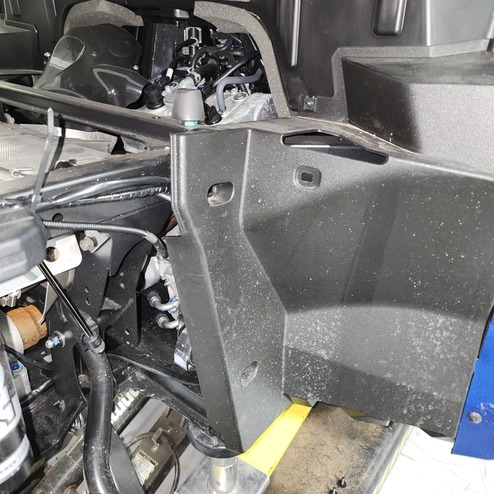

1. Begin by removing the (3x 10mm head bolts and 2x plastic rivets) securing the Right Rear Mud Guard to the vehicle.

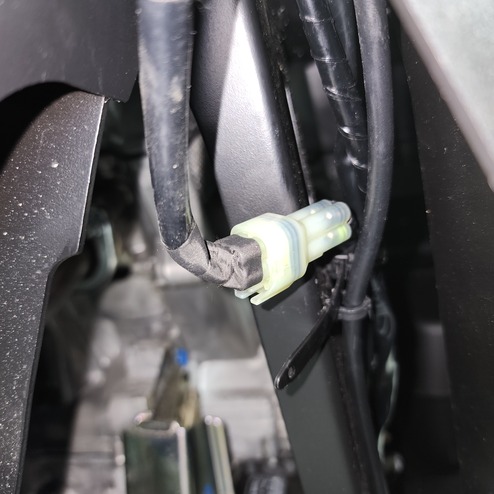

2. Locate and disconnect the 4 pin wire connector for the Rear View Camera.

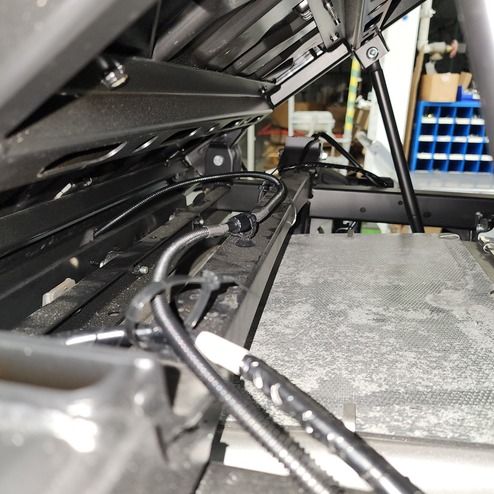

3. Using a pick tool loosen the zip ties and clips securing the camera harness to the vehicle and fish the harness out.

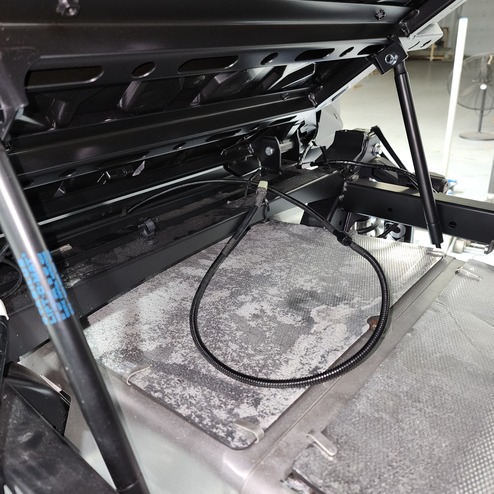

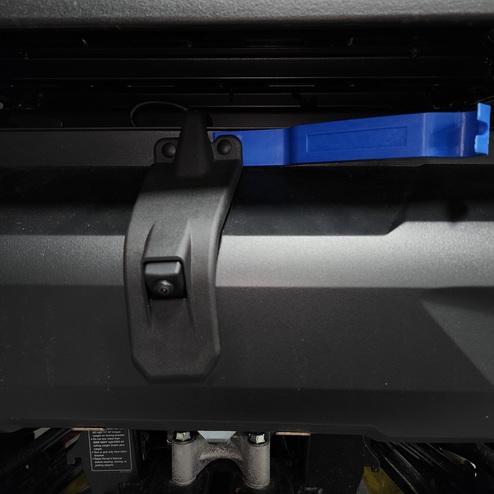

4. Using a non-marring pry tool release the factory camera mount from the factory exhaust heatshield cover.

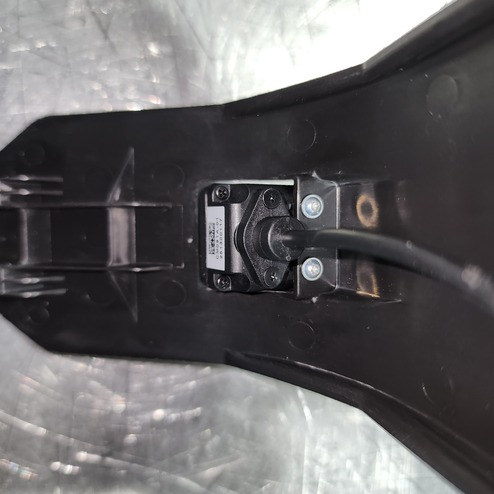

5. With a T5 Torx driver, unscrew the camera from the factory mount and remove the camera completely saving the factory screws for use later.

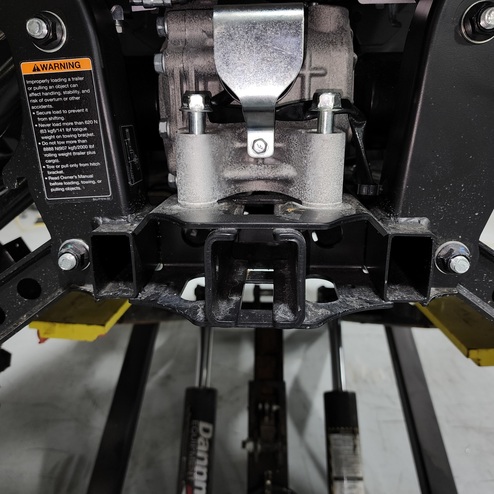

6. Using a 17mm socket or wrench loosen and remove the (2) Rear most bolts securing the rear differential to the frame.

Installation

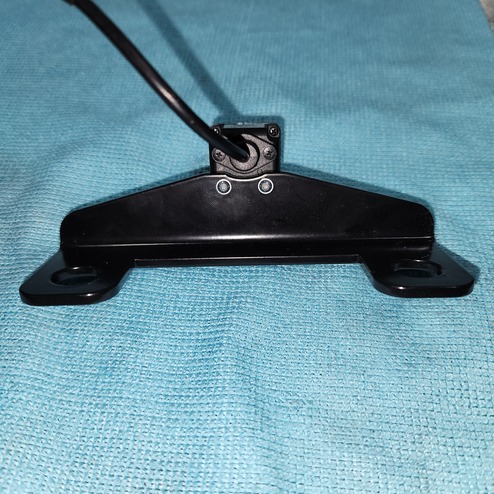

1. Using the Factory T5 Torx screws secure the factory camera to the HMF Camera Relocation Bracket.

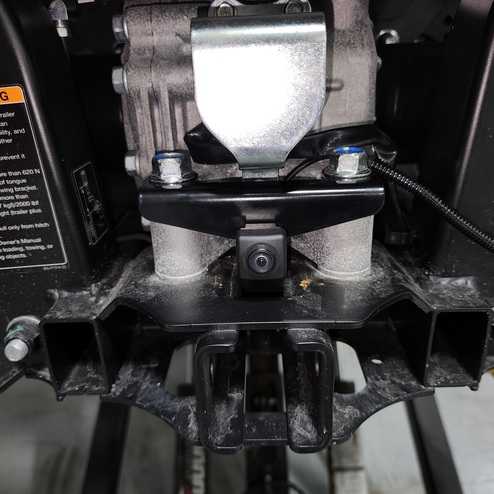

2. With the camera secured to the HMF Relocation Bracket install the camera assembly over the Rear differential mounts with the Factory bolts making sure not to pinch the camera wires.

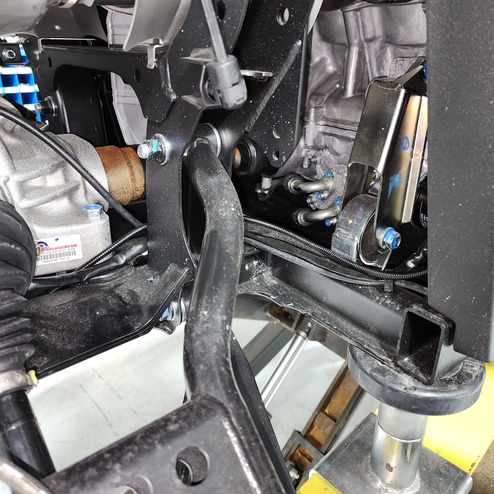

3. Once the camera is mounted in place, route the camera harness along the rear differential solenoid harness and back up to its 4 pin connector. (The camera harness can be routed through the factory Rear differential soleniod harness clips but it is recommended to more zip ties to secure the 2 harnesses together along the way)

4. Resecure the Right Rear Mud Guard with the previosly removed stock hardware.
